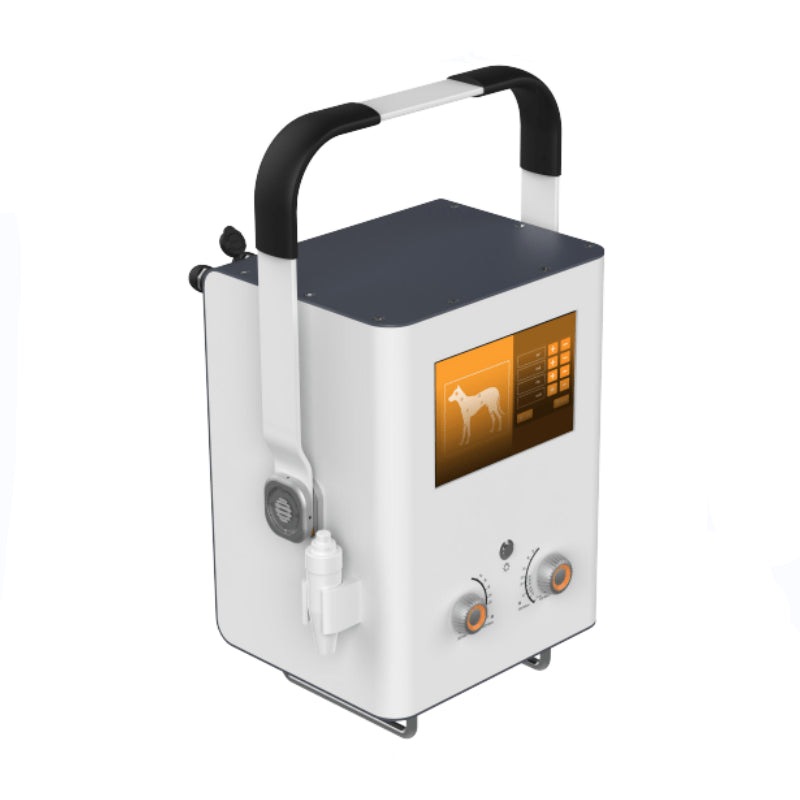

Veterinary Portable X--Ray Machine TTVM50-PHG

TTVM50-PHG Configuration DETAILS
Item:
1set Xray tube 8KW(CE certificated)
1set High voltage generator 8KG, 125KV, 160mA
1 mobile stand with Model 1, Model 2 Optional

PARTS DESCRIPTION
Cute Fashion design
Water-proof, low maintenance costs.
Drop resistance
All-in-one High voltage generator

SPECIFICATION CONFIGURATION
Parameter: TTVM50-PHG
kVp Voltage: 40-125kV (Increasing rate 1kV)
mAp Current Gears: 5.0/6.3/8/10/12.5/16/20/25/32/40/50/63/80/100/125/160
Exposure Time: 3.2ms-10s
mAs: 0.1-250mAs
Working Frequency: 100kHz
X Ray Tube: 0.6mm-1.5mm(76HU8.0kW)
APR: 59 Programs
Power source: 220VAC-240VAC/Battery(Optional)
Weight: 18Kg
Dimension: 320mm*285mm*400mm

FLAT PANAL DETECTOR( WIRED/ WIRELESS OPTIONAL)
Amorphous silicon without splicing
14*17inches,Gos/Csi for your choice/High sensitivity /Excellent spatial resolution Green low dose exposure /Ultralow R noise
More stable performance and environmental adaptability

ONE SET PRODUCT INCLUDE:
DESCRIPTION:
1PCS Wireless Flat Panel Detector ( 14*17 inches) Csl , raw material with MediTech software (Smart-DR Workstation) , (2 Years warranty)
For Veterinary Use.
1PCS Portable X Ray generator for vet use. 8KW, 125KV, 160mA, 1 year warranty, wooden drum package.
1PCS Mobile trolley for X-ray machine
