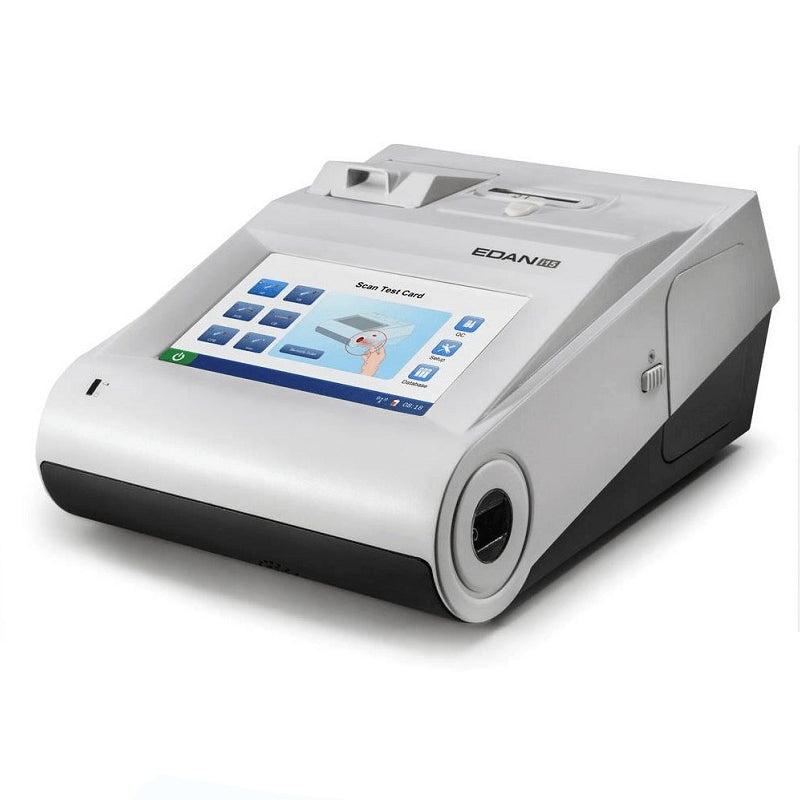

I-15vet Veterinary Blood Gas and Chemistry Analyzer

A NEW ERA OF POCT BLOOD GAS AND CHEMISTRY ANALYSIS
i15Vet ofers new features you can't find on any other analyzer. It's lightweight, portable, and easy to use.
With a user-friendly design requiring zro maintenance, it makes patient-side blood testing efficient and convenient. Unlike other analyzers, it utilizes auto-sampling, reducing the risk of sample contamination and inaccurate results. Employing original manufactured traceable reagent packs, internal quality control, and an electronic simulator, i15Vet provides many time-sensitive tests results accurately in under a minute, its single-use disposable cartridges help health care professionals to provide better, more effective care.
Advanced biosensor technology enables end-users to test up to 15 parameters at one time.

PORTABLE AND EASY
Compacted design with build-in battery, printer and barcode scanner
Simply 3 steps to get comprehensive results within 1min after auto-sampling
Zero maintenance, diagnose in anywhere

ACCURATE AND RELIABLE
Innovative microfluidic and microsensor technology provides
high sensitivity and accuracy
Multi popular time-sensitive parameters come in one cartridge,
including ABG, electrolytes and metabolites
Single-use cartridge avoids contamination
Calibrator, control and electronic simulator to triple guarantee the results

SPECIFICATIONS
Throughput: Results in 1 minute after sample aspiration
Sample volume: 140pl
Quality control: 3or5 levels QC. External electronic simulator
Display: 7-inch color LCD Display. 800*480
Interface: 4xUSB 2.0 host. 1 x RS232. WLAN
Input device: Touch screen and barcode scanner
Power supply: 100-240VAC, 50/60HZ
Battery: 4200mAh rechargeable lithium-ion battery. 50 samples continuous testing
Dimensions (W*H*D): 238.153.310 mm
Weight: 3.65 KG
Operation Environment: 10 C-31 C;%RH: 25%-80%; 70 -106.6 KPa

I-15VET BLOOD GAS TEST CARTRIDGE:

1. Test Cartridge BG8:
pH,pCO,,pO,Na,K,Cl,iCa,Hct,
calculated parameter:HCO act,BE (ecf),ctCO2. sO,(est),Ca"(7.4],AnGap,tHb (est),pO,(A-a], p,(a/AJ,RI,pO/FIO,,pH (T],pCo,(T),po,(T), po2 (A-a](T),RI (T),po,(T)/FIO

2. Test Cartridge BG10
pH,pCo2,pO,Na,K,Cl,iCa,Hct,Glu,Lactat calculated parameter:cH+,HCO2 act,HCO std, BE (ecf),BE (B],BB (B],ctCO,,sO,(est),Ca"+(7.4],
AnGap,tHb (est],pO,(A-a),pO,(a/A],RI,pO/FIO, cH*(T),pH (T),pCo,(T),po,(T),po,(A-a)(T), po,(a/A](T],RI (T],po2 (T]/FIO
