Pet medical equipment

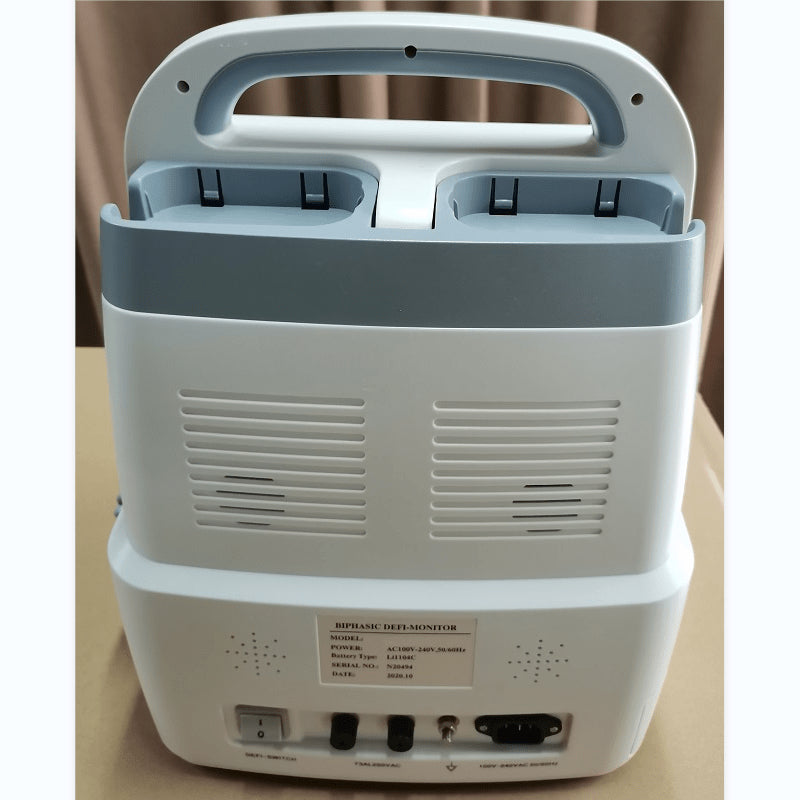

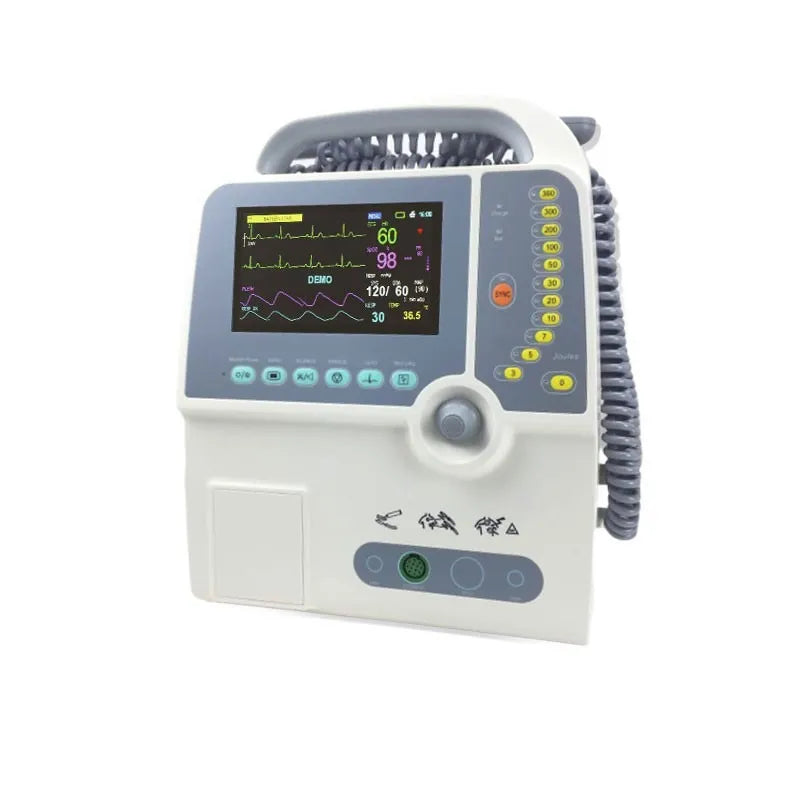

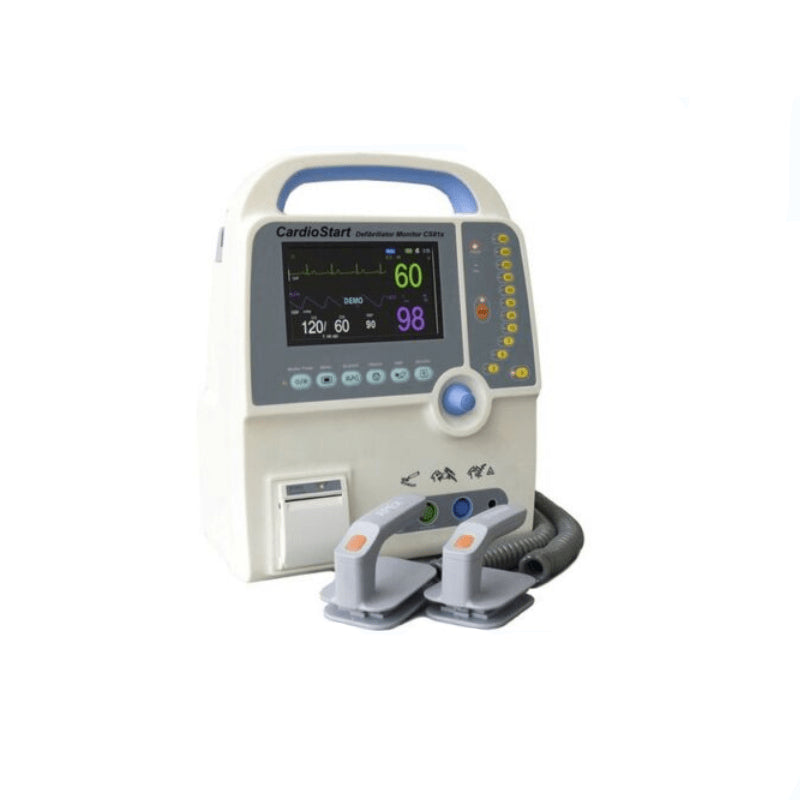

Veterinary Defibrillator Monitor Cardio VET-30
Veterinary Defibrillator Monitor Cardio VET-30
정가
$3,500.00
정가
할인가
$3,500.00
단가
단위
세금이 포함됩니다.
픽업 사용 가능 여부를 로드할 수 없습니다.
Specification
Features
* SPO2(Optional)
* Voice prompt
* Standard built-in Recorder, Defibrillation discharge trigger recording
* The ECG waveform via paddle electrode
* Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen
* Voice prompt
* Standard built-in Recorder, Defibrillation discharge trigger recording
* The ECG waveform via paddle electrode
* Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen
Built-in Recorder
* Paper: 50mm thermal.
* Printing Method: High-resolution, thermal print head.
* Recorddate, time ,sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform Print mode
* HR exceed limitsalarm recording
* Auto timed recording
* Real-Time Recording
* Defibrillation discharge trigger recording
* Paper: 50mm thermal.
* Printing Method: High-resolution, thermal print head.
* Recorddate, time ,sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform Print mode
* HR exceed limitsalarm recording
* Auto timed recording
* Real-Time Recording
* Defibrillation discharge trigger recording
Power
* AC-DC dual-use: Use the batteries,AC100V~240V,50/60Hz.
* VehicleVoltage(Option): DC 12V
* Main unit:
Portable
* Dimensions:L320xW205xH410
* Weight:7.5kg
Display
|
Screen Type |
High-resolution display, TFT colour display
|
|
Screen Size
|
7inches (17.7cm) diagonally
|
|
Sweep Speed
|
5/25/50mm/sec
|
|
Information
|
Heart Rate, Lead, Alarm On/Off, Delivered Energy
|
|
Resolution
|
800X480
|
ECG
|
Patient Connection |
3-lead ECG cable, or 5-lead ECGcable, paddles
|
|
Lead Selection
|
Displayed on monitor,paddles, I, II, III,AVR, AVL, AVF, V
|
|
ECG Size
|
5,5, 10, 20, 30mm/mV display on monitor
|
|
Heart Rate
|
20-35
|
|
Protection
|
With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knifeand defibrillation
|
Defibrillator
|
Waveform |
Biphasic
|
|
Defibrillator type
|
ManualExternal Synchronous/Asynchronous Defibrillat
|
|
Charge Time
|
Less than 10seconds to 360 Joules
|
|
Energy Display
|
Monitor display indicates both selected anddelivered energy
|
|
Charge Prompt Type
|
Voice and visual prompts
|
|
Energy Selection
|
Selectable at0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules
|
|
Standard Adult/Pediatric Paddles
|
Reusable external adultpaddles (pediatric paddles integrated)
|
BatteryDescription
|
Standard Type |
Li-ion battery Li1104c 11.1Vdc 4000mAh X2
|
|
Standard Capacity
|
Up to 10 hours ECG monitoring or 60 full-energy discharges
|
|
Low Battery Indicator
|
Flashing low battery icon on display and Bat Indicator on the panel of defi-monitor be on
|
|
Recharge Rate
|
80% in 3 hours. 100% in 5
|
