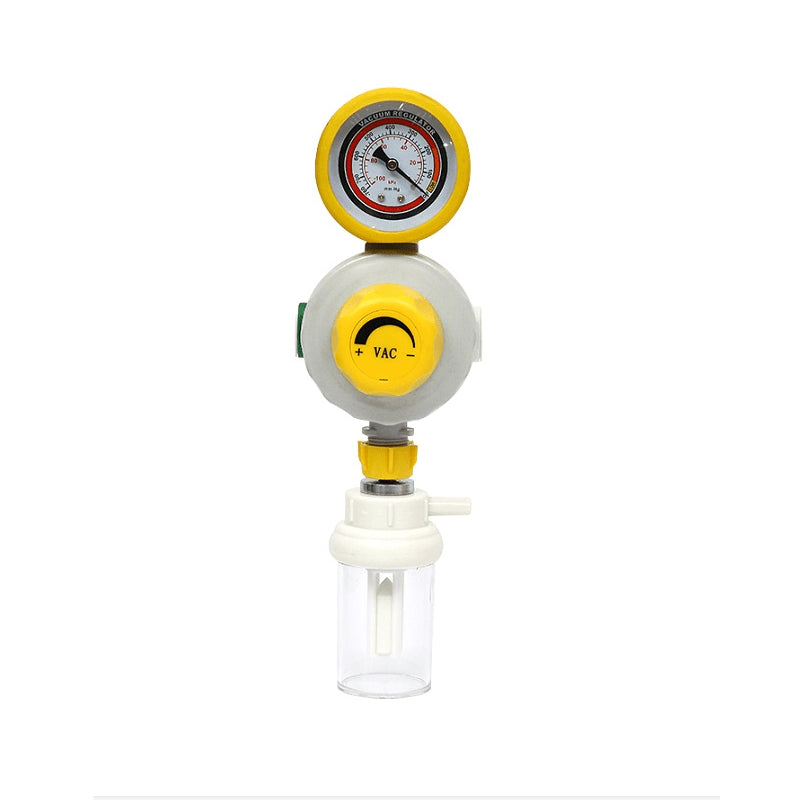

Vacuum Regulator

Medical vacuum regulator system one end of the endotracheal tube/tracheostomy tube persistent connections, no contact with the human body. The other end is connected to a vacuum suction source, for attracting the endotracheal tube/tracheostomy tube cuff above secretions.

SPECIFICATION
Maximum suction rate:115 L/min. ±5 L/min. at -950 mbar
Maximum adjustable depression:-950 mbar
Maximum supply depression:-950 mbar

DETAILS:
Have the diaphragm no glass adjust valve.
Double protect.
2.5 inch vacuum pressure gage
The quick vacuum switch.
Big size double scale vacuum gauge.
Big size metal handwheel,adjust conveniently.
Quick bottle change design.
Integrated combination of high capacity bottles, suitable for all occasions.
Straight-type relief valve,clean it conveniently.
Available in a variety of inlet adapter. Including OHMEDA, DISS, CHEMETRON, FRENCH, BRITISH, DIN, JISS Standard.
Vacuum trap prevents overflow of waste fluid from entering the suction regulator.

1.Vacuume pressure valve:-760~0 mmHg
2.Vacuume flow:more than 30L/min(adjustable).
3.When the jar is full ,suction process will be stop automatically.
4.2.5 inch vacuum pressure gage(negative pressure gauge)
5.The quick vacuum switch.
6.Easy adjust the pressure valve,clean it conveniently. 7.On-Off fuction:green is ON/white is OFF
8.Safty jar:Effectively prevent backflow when liquid set
full,unbreakable
9.The material of jar is Polypropylene,it can be sterilized at 121 degree
10.Safety jar:85ml
11.Material of Jar:Polypropylene
