Pet medical equipment

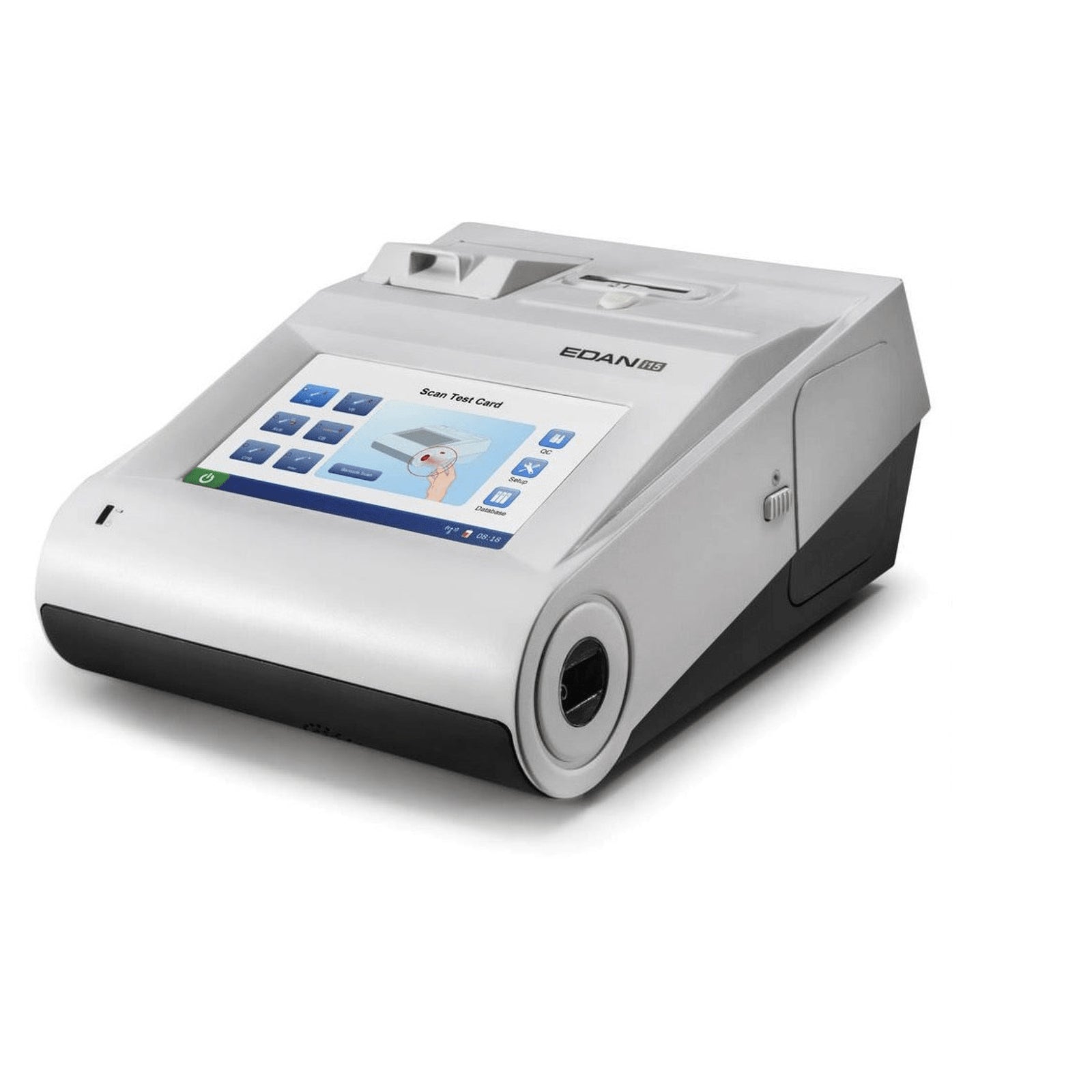

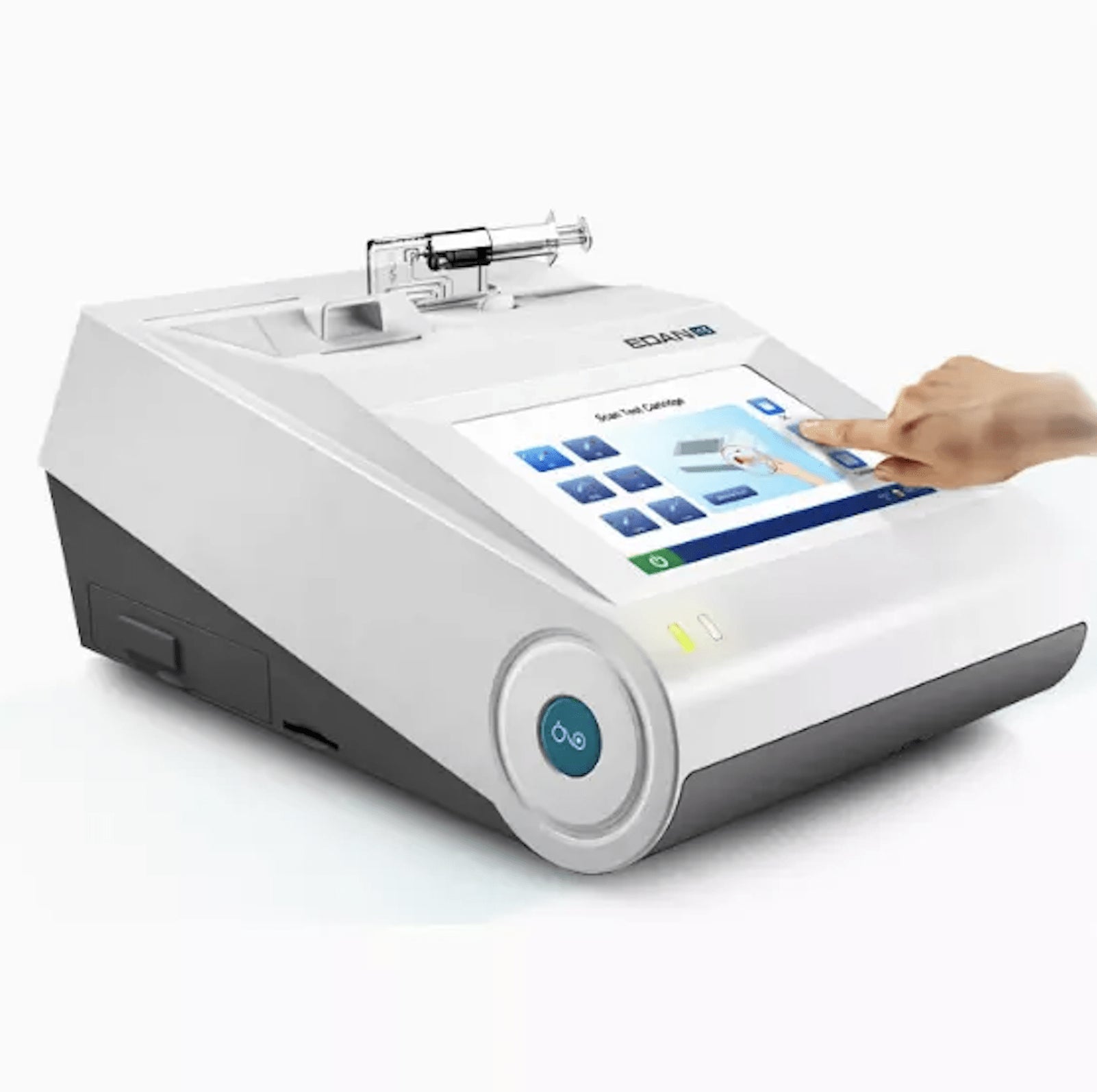

Portable Medical Veterinary Blood Gas and Chemistry Analyzer EDAN i15/i15 Vet
Portable Medical Veterinary Blood Gas and Chemistry Analyzer EDAN i15/i15 Vet
정가
$4,000.00
정가
할인가
$4,000.00
단가
단위
세금이 포함됩니다.
픽업 사용 가능 여부를 로드할 수 없습니다.
Variety of test Cartridges：
BG3: pH , pCO2 , pO2
BG8: pH , pCO2 , pO2 , Na , K , Cl, Ca , Hct
BC4: Na , K , Cl, Ca , Hct
BG4: pH , pCO2 , pO2 , Lac
BG9: pH , pCO2 , pO2 , Na , K , Cl, Ca, Glu, Hct
BG10: pH , pCO2 , pO2 Na , K , Cl, Ca, Glu, Lac , Hct
Calculated values:
HCO3-act, HCO3-std, BE(ecf), BE(B), BB(B), ctCO2, sO2(est), Ca++(7.4), AnGap, tHb(est), pO2(A-a), pO2(a/A), RI, pO2/FIO2, cH+(T),
pH(T), pCO2(T), pO2(T), pO2(A-a)(T), pO2(a/A)(T), RI(T), pO2(T)/FIO2, Ca++(7.4)
BG3: pH , pCO2 , pO2
BG8: pH , pCO2 , pO2 , Na , K , Cl, Ca , Hct
BC4: Na , K , Cl, Ca , Hct
BG4: pH , pCO2 , pO2 , Lac
BG9: pH , pCO2 , pO2 , Na , K , Cl, Ca, Glu, Hct
BG10: pH , pCO2 , pO2 Na , K , Cl, Ca, Glu, Lac , Hct
Calculated values:
HCO3-act, HCO3-std, BE(ecf), BE(B), BB(B), ctCO2, sO2(est), Ca++(7.4), AnGap, tHb(est), pO2(A-a), pO2(a/A), RI, pO2/FIO2, cH+(T),
pH(T), pCO2(T), pO2(T), pO2(A-a)(T), pO2(a/A)(T), RI(T), pO2(T)/FIO2, Ca++(7.4)
|
Item
|
Edan i15 analizador
|
|
Display
|
7-inch color LCD display, 800*480
|
|
Throughput
|
Results in minute after sample aspiration
|
|
Sample volume
|
140u l
|
|
Quality control
|
3 or 5 level QC, External electronic simulator
|
|

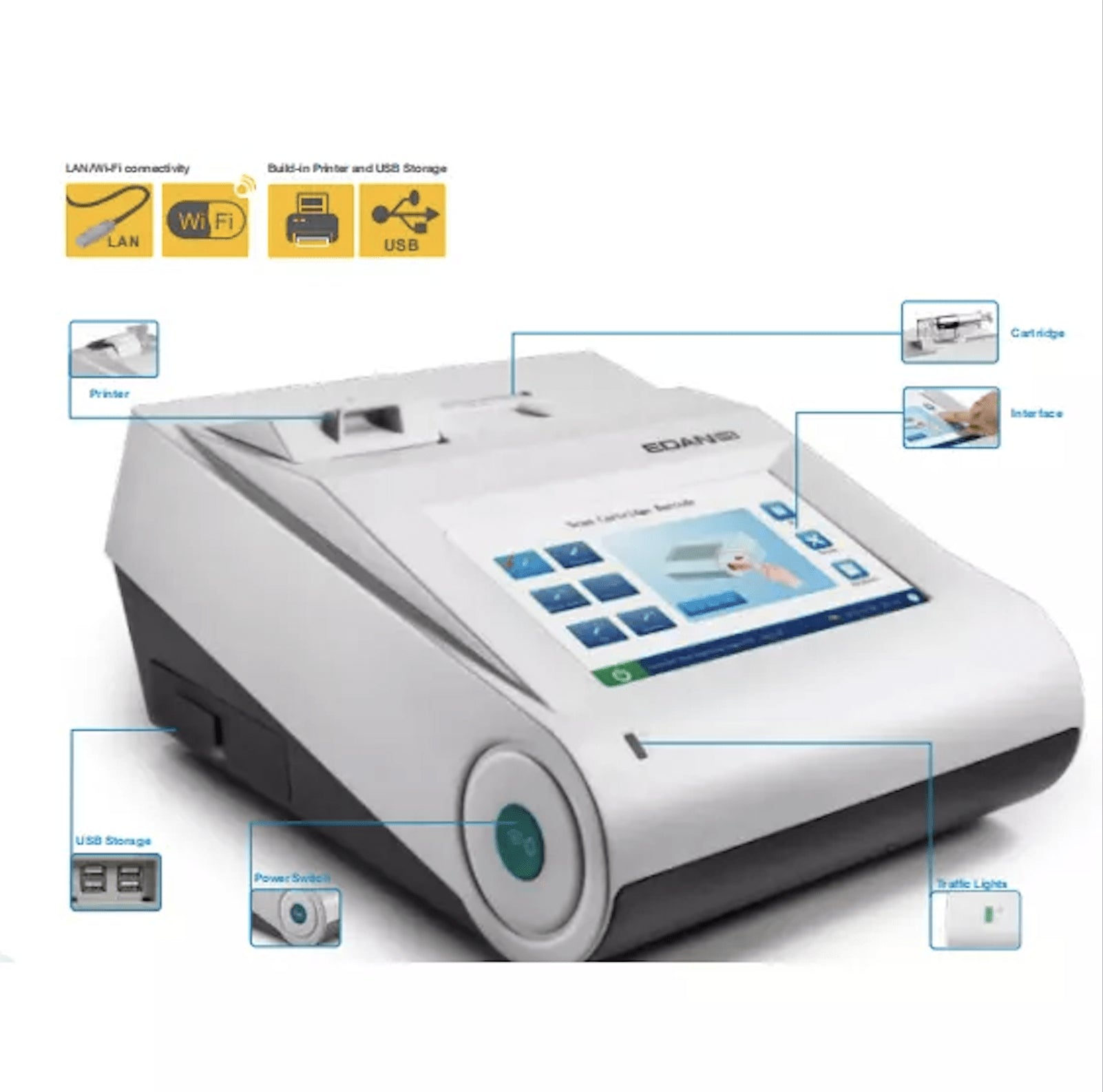

Interface
|
4xUSB 2.0 host, 1xRS232, WLAN
|
|
Input device
|
Touch screen and barcode scanner
|
|
Power supply
|
100-240VAC, 50/60Hz
|
|
Battery
|
5000mAh rechargeable lithium-ion battery, 50 samples continuous testing
|
|
Dimensions (W*H*D)
|
238*153*310nm
|
|
Weight
|
3.65kg
|
|
Operation environment
|
10-31℃, 25-80%RH, 10-106.6KPa
|
Test Cartridge BG8
pH,pCO,,pO,Na,K,Cl,iCa,Hct,
calculated parameter:HCO act,BE (ecf),ctCO2. sO,(est),Ca"(7.4],AnGap,tHb (est),pO,(A-a], p,(a/AJ,RI,pO/FIO,,pH (T],pCo,(T),po,(T), po2 (A-a](T),RI (T),po,(T)/FIO
Test Cartridge BG10
pH,pCo2,pO,Na,K,Cl,iCa,Hct,Glu,Lactat calculated parameter:cH+,HCO2 act,HCO std, BE (ecf),BE (B],BB (B],ctCO,,sO,(est),Ca"+(7.4],
AnGap,tHb (est],pO,(A-a),pO,(a/A],RI,pO/FIO, cH*(T),pH (T),pCo,(T),po,(T),po,(A-a)(T), po,(a/A](T],RI (T],po2 (T]/FIO
